EnvironmentThinking of the 1st century beyond 10 years.
We fulfill our social responsibilities by conducting innovative activities in business structures, including eco-friendly products that are an important requirement in the 21st century. By integrating our 25 years of product design technology for machine tools and automation equipment with proven dust collection technology from O-DEN in Japan, we have been providing high-quality products from various industries to luxury hotel VIP ROOM home appliances, starting with OEM for electrostatic precipitators. It is newly introduced to the world.

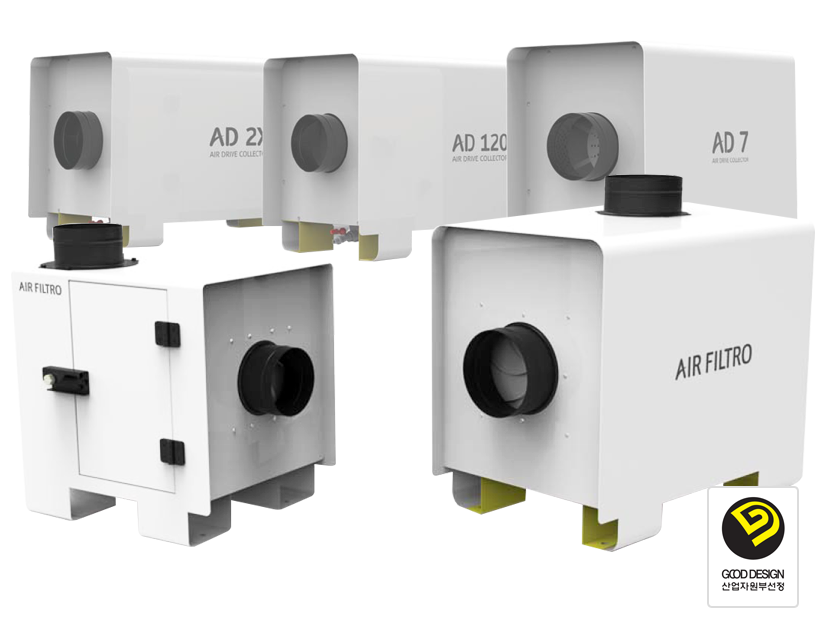

- Selected in 2013 Korea Good Design Industrial equipment.
Factory type air purifier
- AIR FILTRO
- AIR DRIVE
Based on design and technology, based on reliable performance, we will move forward as the right partner to create value for society, the environment, and the company.

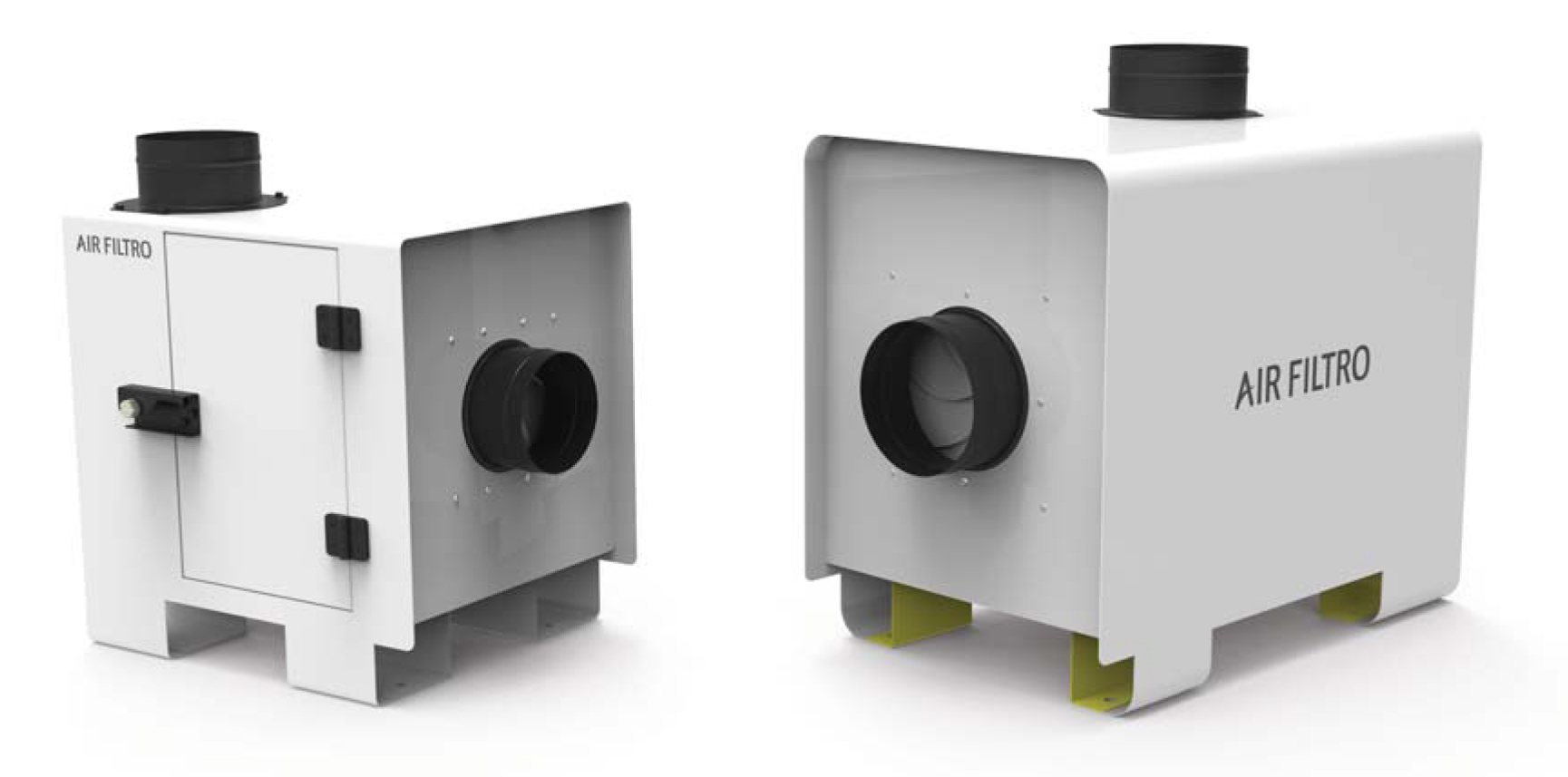

AIR FILTRO
- Efficiency 98%
- More than 98% capture is possible
- Total Cost Down
- The maintenance cost (electricity fee) is very low compared to other models.
- VIBRATION NON
- The vibration of the device is very low by using a single-phase motor.
- Product life Extension
- Our products have a longer lifespan than other products. And filter replacement is very easy.
AIR FILTRO
- It is a new dust collector that has not existed in the world that meets the company's mission and core values to make eco-friendly products, an important requirement of the 21st century. Based on design know-how over the past 25 years, we have developed high-efficiency, low-cost products.
- In addition, it is specialized in maintenance and safety, and it is equipped with two safety switches and two internal fuses.

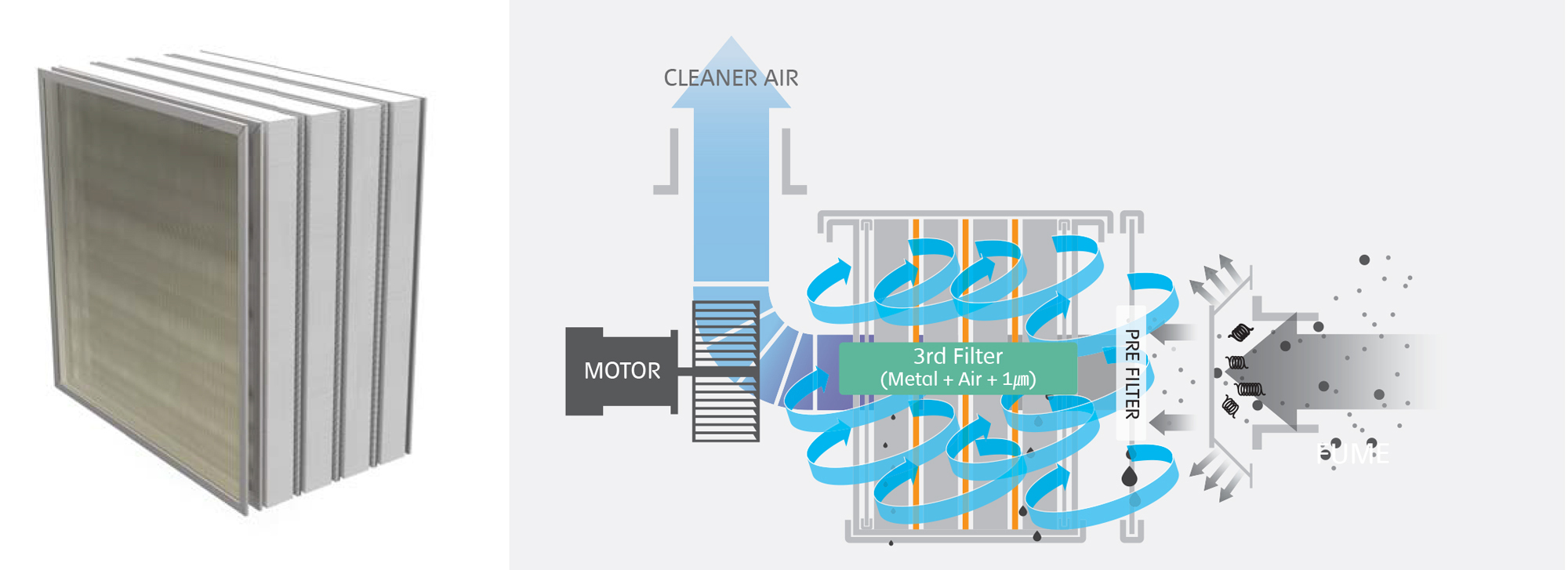

PERFORMANCE PROPERTY
- Through the primary filter in the front part, the turbulence is formed inside to make contact with the filter.
- Fine oil that has separated the filtrate through a chip separator collects more than 98% of the oil through a special filter developed by our company.
- The oil-filtered fume discharges the purified fume to the outside through a rear end impeller to provide a pleasant working environment in the factory.
SPECIFICATIONS
Drag to the right to see the table.
unit : mm| MODEL | AF 7 | AF 12 | AF 2X | AF 3X |
|---|---|---|---|---|
| Applied equipment | Small model, 6 ~ 8 "lathe, automatic lathe, 8 ~ 10" lathe, tapping center, interlocking air conditioning system | |||
| Power(V) | AC 220V (50 / 60Hz) single phase | AC 220V (50 / 60Hz) three phase | ||
| Motor(W) | 90W | 150W | 750W | 1500W |
| Revolution(rpm) | 1850 | 3450 | 3450 | 3450 |
| Air Volume (㎥/minute) | 5 | 10 | 20 | 30 |
| Noise (db) | 62 ±2 | 63 ±2 | 72 ±2 | 75 ±2 |
| Weight(Kg) | 22 | 23 | 40 | 55 |
Drag to the right to see the table.

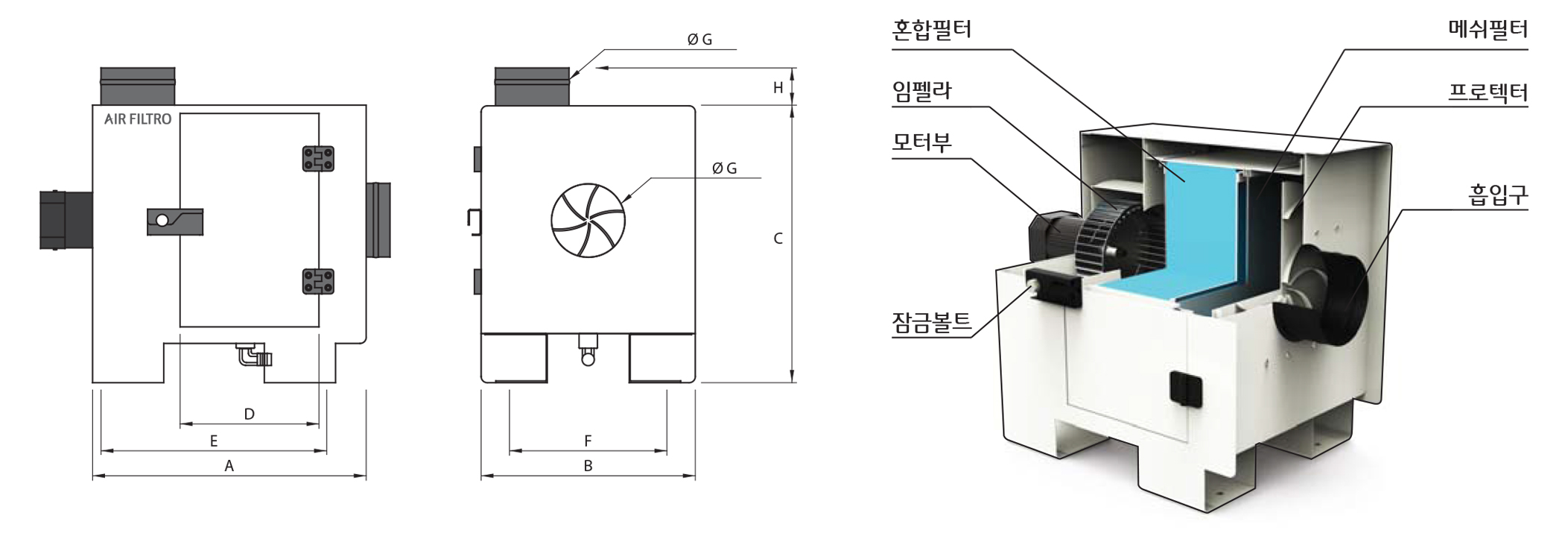

DIMENSIONS
Drag to the right to see the table.
unit : mm| FORM | SIZE | BOLTING SIZE | DUCT | |||||
|---|---|---|---|---|---|---|---|---|
| Dimensions | A | B | C | D | E | F | G | H |
| AF 7 | 446 | 350 | 452 | 226 | 350(M8) | 230 | 122 | 69 |
| AF 12 | ||||||||
| AF 2X | 600 | 380 | 515 | 293 | 490 (M12) | 280 | 150 | 69 |
| AF 3X | 600 | 430 | 555 | 295 | 490 (M12) | 330 | 200 | 69 |
Drag to the right to see the table.

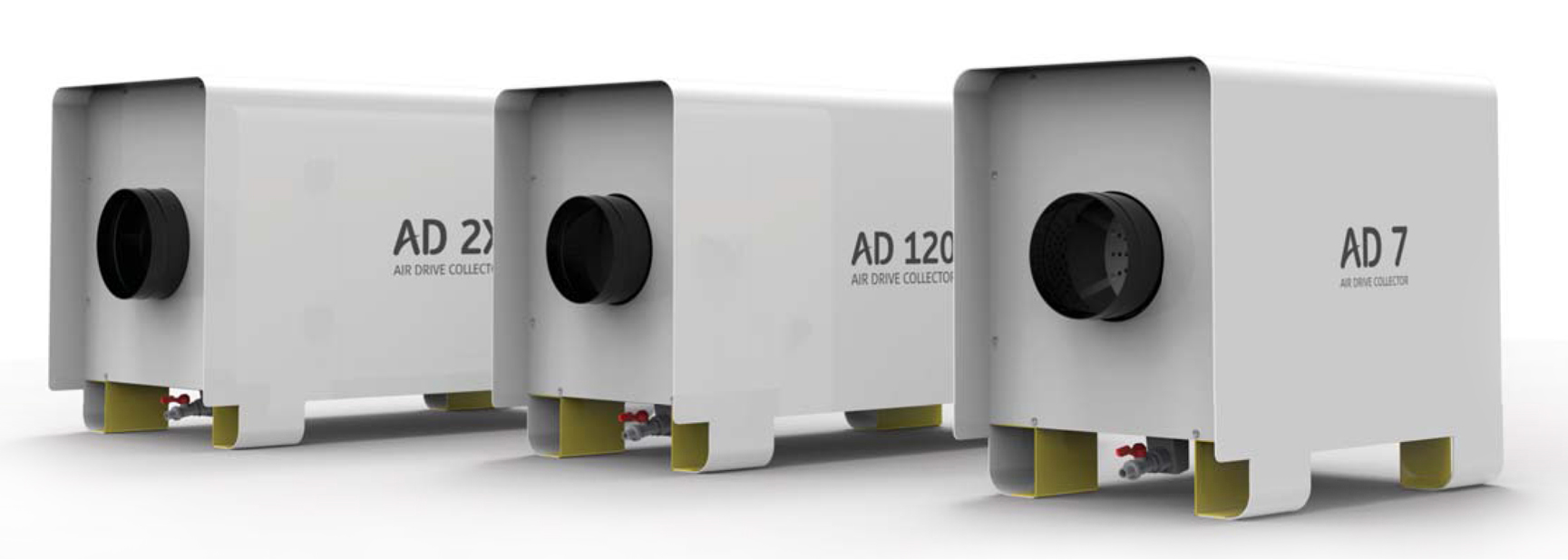

AIR DRIVE
- Maintenance FREE
- Maintenance cost is down because there is no need for continuous filter replacement.
- Nonvibration 99.9%
- 99.9% oil is collected to improve performance.
- Industrial waste ZERO
- There is no industrial waste, preventing environmental pollution.

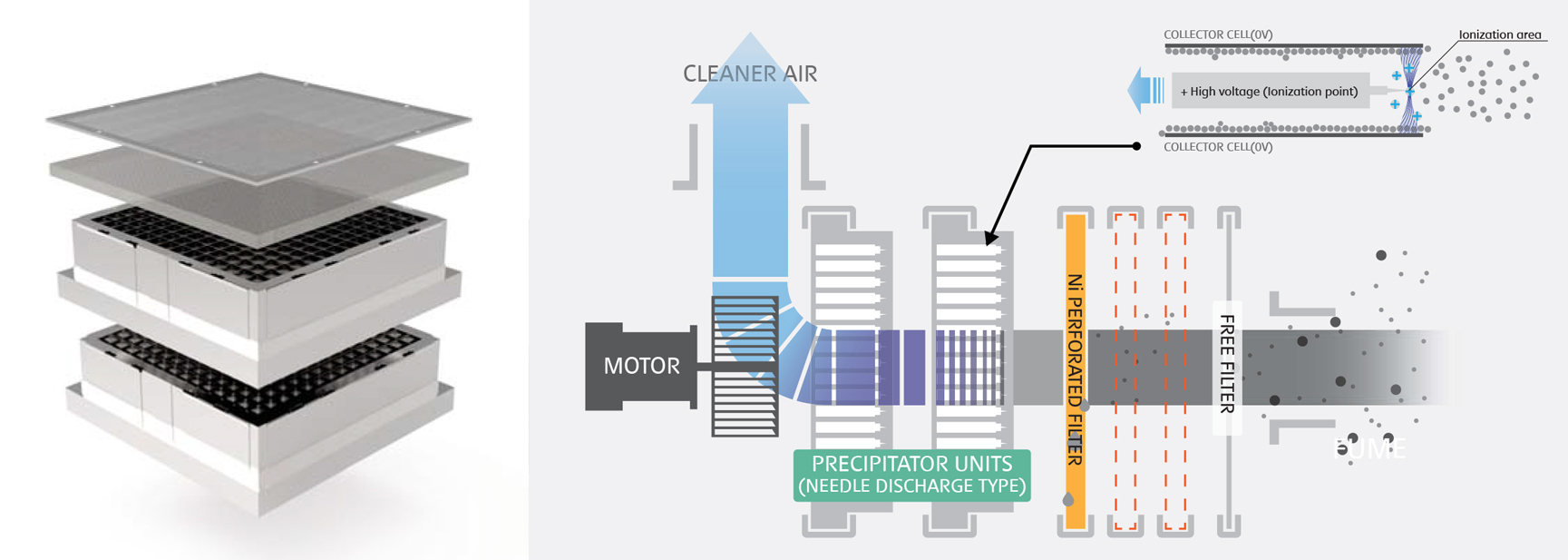

PERFORMANCE PROPERTY
- It contains the foreign matter that is sucked with the fume through the complex path structure of the pre-filter and nickel filter by passing the fume containing oil into the device.
- The remaining fine particles (oil mist) that have passed through the filtration filter are repelled by + high pressure at the inlet point charged with +, passing through an ionization region composed of needle collector cells, and captured by being forced to the collector cell side.
- The collected oil mist falls off the connection of the unit and collects in the drain plate, and the collected oil mist can be periodically discharged through the valve.
SPECIFICATIONS
Drag to the right to see the table.
unit : mm| MODEL | AD 7 | AD 12 | AD 2X | AD 3X |
|---|---|---|---|---|
| Applied equipment | Small model, 6 ~ 8 "lathe, automatic lathe, 8 ~ 10" lathe, tapping center, interlocking air conditioning system | |||
| Power(V) | AC 220V (50 / 60Hz) three phase | UPDATE Schedule | ||
| Motor(W) | 90W | 150W | ||
| Revolution(rpm) | 1850 | 3450 | ||
| Air Volume(㎥/minute) | 7 | 12 | ||
| Noise(db) | 62 ±2 | 65 ±2 | ||
| Weight(Kg) | 21 | 52 | ||
Drag to the right to see the table.

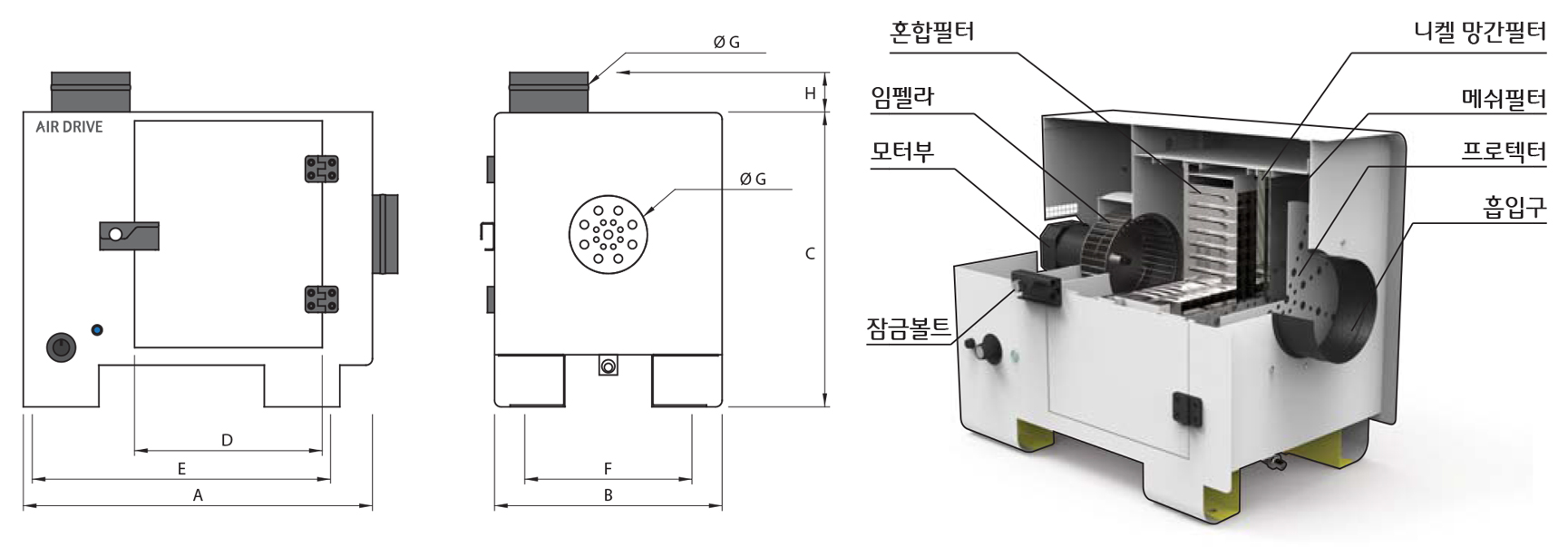

DIMENSIONS
| FORM | SIZE | BOLTING SIZE | DUCT | |||||
|---|---|---|---|---|---|---|---|---|
| Dimensions | A | B | C | D | E | F | G | H |
| AD 7 | 600 | 380 | 515 | 293 | 490(M8) | 280 | 150 | 69 |
| AD 12 | 850 | 380 | 515 | 447 | 727(M8) | 280 | 150 | 69 |
| AD 2X | UPDATE Schedule | |||||||
| AD 3X | ||||||||
Drag to the right to see the table.
